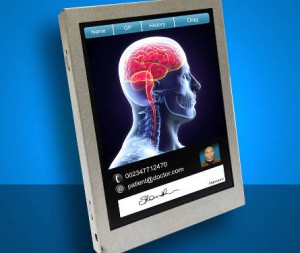

TX09D200VM0BAA is QVGA (240 x 320, 3:4) resolution and IPS (in-plane switching) technology to provide highly consistent colour and image performance from all viewing angles.
“The use of IPS technology enables excellent colour saturation, deep black levels and viewing angles of up to 170° degrees in all directions,” said Data Modul, which is stocking the display. “It can be used in either landscape or portrait mode.”
Contrast ratio is 900:1 and the LED backlight is rated at 600cd/m² (70,000 hours to 50% brightness).
The 50pin CMOS interface supports 8bit RGB data for a colour palette of up to 16.7million colours.
Mechanically, it has and enclosed metal bezel with integrated mounting fixtures and is 65.7 x 88.8 x 9.95mm for a display area of 53.28 x 71.04mm. Weight is 72g.
Guaranteed operating range is -30 to +85°C, with storage acepted from -40 to +90°C.
Use is expected in industrial, medical, marine, automotive and aerospace applications where operation under mechanical shock and vibration is a necessity.
For additional information, contact Data Modul.
