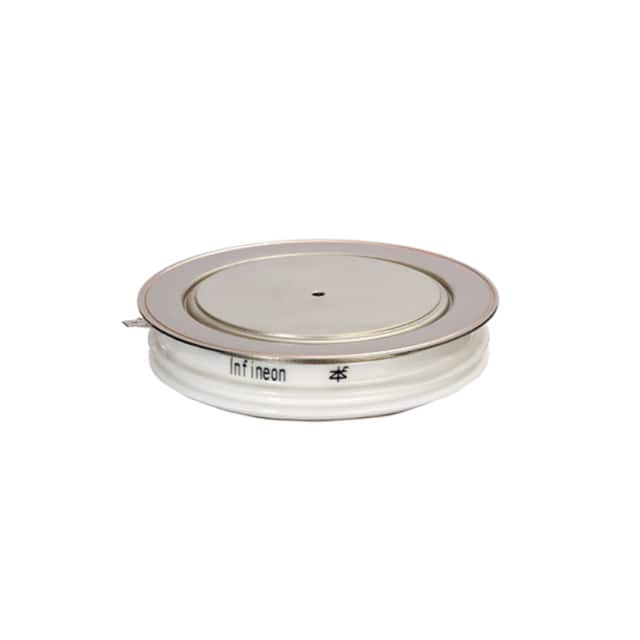

Name: Infineon Technologies T1960N22TOFVTXPSA1
Brand: Infineon Technologies
SKU: T1960N22TOFVTXPSA1
Price: 453.17 USD
Availability: InStock

Specifications: Part Number:T1960N22TOFVTXPSA1; Manufacturer:Cypress Semiconductor (Infineon Technologies); Description:SCR MODULE 2200V 4100A DO200AD; RoHs Status:; ROHS3 Compliant; Nkesp Part Number:73D-T1960N22TOFVTXPSA1; Part Status27323 pcs

Manufacturer:Cypress Semiconductor (Infineon Technologies)

Voltage - Off State:2.2 kV

Voltage - Gate Trigger (Vgt) (Max):2.5 V

Structure:Single

Series:-

Package / Case:TO-200AD

Package:Tray

Operating Temperature:-40°C ~ 125°C

Number of SCRs, Diodes:1 SCR

Mounting Type:Chassis Mount

Current - On State (It (RMS)) (Max):4100 A

Current - On State (It (AV)) (Max):1960 A

Current - Non Rep. Surge 50, 60Hz (Itsm):40000A @ 50Hz

Current - Hold (Ih) (Max):300 mA

Current - Gate Trigger (Igt) (Max):300 mA

Base Product Number:T1960N22

Download Details PDF:

T1960N22TOFVTXPSA1.pdf

In stock: 27323 pcs

Request Quote: Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.

Quantity

Contact Name
Company Name
Email address
Telephone
Comments

QUICK RFQ

Data sheet

Product Comparison

Part Number	T1960N20TOFVTXPSA1	T1930N32TOFVTXPSA1	T1960N18TOFVTXPSA1	T1930N38TOFVTXPSA1
Manufacturer	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies
Voltage - Off State	-	-	-	-
Operating Temperature	-	-	-	-
Number of SCRs, Diodes	-	-	-	-
Structure	-	-	-	-
Current - Hold (Ih) (Max)	-	-	-	-
Base Product Number	-	-	-	-
Series	-	*	*	*
Package	-	Bulk	Bulk	Bulk
Package / Case	-	-	-	-
Current - On State (It (RMS)) (Max)	-	-	-	-
Current - Gate Trigger (Igt) (Max)	-	-	-	-
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	-	-	-
Voltage - Gate Trigger (Vgt) (Max)	-	-	-	-
Mounting Type	-	-	-	-
Current - On State (It (AV)) (Max)	-	-	-	-
