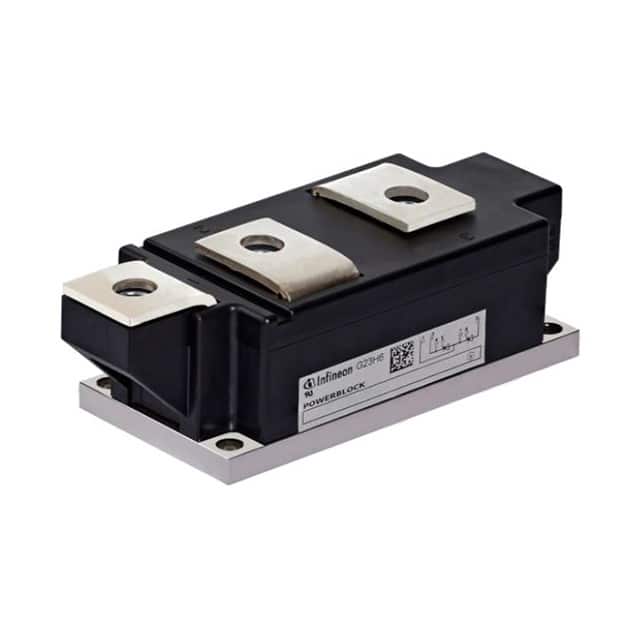

Name: Infineon Technologies TD500N12KOFHPSA2
Brand: Infineon Technologies
SKU: TD500N12KOFHPSA2
Price: 265.62 USD
Availability: InStock

Specifications: Part Number:TD500N12KOFHPSA2; Manufacturer:Cypress Semiconductor (Infineon Technologies); Description:SCR MODULE 1800V 900A MODULE; RoHs Status:; ROHS3 Compliant; Nkesp Part Number:73D-TD500N12KOFHPSA2; Part Status38768 pcs

Manufacturer:Cypress Semiconductor (Infineon Technologies)

Voltage - Off State:1.8 kV

Voltage - Gate Trigger (Vgt) (Max):2.2 V

Structure:Series Connection - SCR/Diode

Series:-

Package / Case:Module

Package:Tray

Operating Temperature:-40°C ~ 125°C

Number of SCRs, Diodes:1 SCR, 1 Diode

Mounting Type:Chassis Mount

Current - On State (It (RMS)) (Max):900 A

Current - On State (It (AV)) (Max):500 A

Current - Non Rep. Surge 50, 60Hz (Itsm):17000A @ 50Hz

Current - Hold (Ih) (Max):300 mA

Current - Gate Trigger (Igt) (Max):250 mA

Base Product Number:TD500N12

Download Details PDF:

1.TD500N12KOFHPSA2.pdf 2.TD500N12KOFHPSA2.pdf 3.TD500N12KOFHPSA2.pdf 4.TD500N12KOFHPSA2.pdf

In stock: 38768 pcs

Request Quote: Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.

Quantity

Contact Name
Company Name
Email address
Telephone
Comments

QUICK RFQ

Data sheet

Product Comparison

Part Number	TD500N12KOFS01HPSA1	TD500N16KOFHPSA2	TD500N18KOFHPSA2	TD520N22KOFHPSA2
Manufacturer	Infineon Technologies	Infineon Technologies	Infineon Technologies	Infineon Technologies
Structure	-	-	-	-
Base Product Number	-	-	-	-
Mounting Type	-	-	-	-
Voltage - Gate Trigger (Vgt) (Max)	-	-	-	-
Operating Temperature	-	-	-	-
Number of SCRs, Diodes	-	-	-	-
Current - Hold (Ih) (Max)	-	-	-	-
Voltage - Off State	-	-	-	-
Current - Gate Trigger (Igt) (Max)	-	-	-	-
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	-	-	-
Current - On State (It (AV)) (Max)	-	-	-	-
Package	-	Bulk	Bulk	Bulk
Series	-	*	*	*
Package / Case	-	-	-	-
Current - On State (It (RMS)) (Max)	-	-	-	-
